PIPELINE INSPECTION

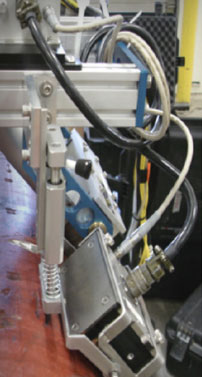

Emat Pipeline Inspection

EMAT requires no couplant and uses guided waves to perform rapid, volumetric inspection for detection of pitting and wall loss, in pipelines. This system is set up for piping 6"-24" O.D. Supports Axial and Circumferential scanning modes using either Pulsed or Permanent magnets. Provides A, B & C Scan displays with real time analysis. At 6" per second, the EMAT pipe scanner will cover 360* of the pipe, identifying internal and external corrosion as well as other conditions. Ideally suited for Under Support Corrosion detection.
